Fitting a hydro-thermal-time-model to seed germination data

Andrea Onofri ·  Added on January 10, 2023 ·  11 min read


This is a follow-up post. If you are interested in other posts of this series, please go to: https://www.statforbiology.com/tags/drcte/. All these posts exapand on a paper that we have recently published in the Journal ‘Weed Science’; please follow this link to the paper.

Germination assay

This dataset was obtained from previously published work (Mesgaran et al., 2017) with Hordeum spontaneum [C. Koch] Thell. The germination assay was conducted using four replicates of 20 seeds tested at six different water potential levels (0, −0.3, −0.6, −0.9, −1.2 and −1.5 MPa). Osmotic potentials were produced using variable amount of polyethylene glycol (PEG, molecular weight 8000) adjusted for the temperature level. Petri dishes were incubated at six constant temperature levels (8, 12, 16, 20, 24 and 28 °C), under a photoperiod of 12 h. Germinated seeds (radicle protrusion > 3 mm) were counted and removed daily for 20 days.

This dataset is available as hordeum in the drcSeedGerm package, which needs to be installed from github (see below), together the package drcte, which is necessary to fit time-to-event models. The following code loads the necessary packages, loads the dataset rape and shows the first six lines.

# Installing packages (only at first instance)
# library(devtools)
# install_github("OnofriAndreaPG/drcSeedGerm")
# install_github("OnofriAndreaPG/drcte")
library(drcSeedGerm)
library(tidyverse)
data(hordeum)
head(hordeum)
##   temp water Dish timeBef timeAf nViable nSeeds nCum
## 1    8  -1.5    1       0     24      20      0    0
## 2    8  -1.5    1      24     48      20      0    0
## 3    8  -1.5    1      48     72      20      0    0
## 4    8  -1.5    1      72     96      20      0    0
## 5    8  -1.5    1      96    120      20      0    0
## 6    8  -1.5    1     120    144      20      1    1

Preliminary analyses

First of all, it is necessary to mention that this dataset was already analysed in Onofri et al. (2018; Example 2) by using the same methodology, although, in that paper, the R implementation was different (see Supplemental Material) and it is now outdated.

In the above data frame, ‘timeAf’ represents the moment when germinated seeds were counted, while ’timeBef’ represents the previous inspection time (or the beginning of the assay). The column ’nSeeds’ is the number of seeds that germinated during the time interval between ‘timeBef’ and ‘timeAf. The ’nCum’ column contains the cumulative number of germinated seeds and it is not necessary for time-to-event model fitting, although we can use it for plotting purposes.

hordeum <- hordeum %>%
  mutate(propCum = nCum/nViable)

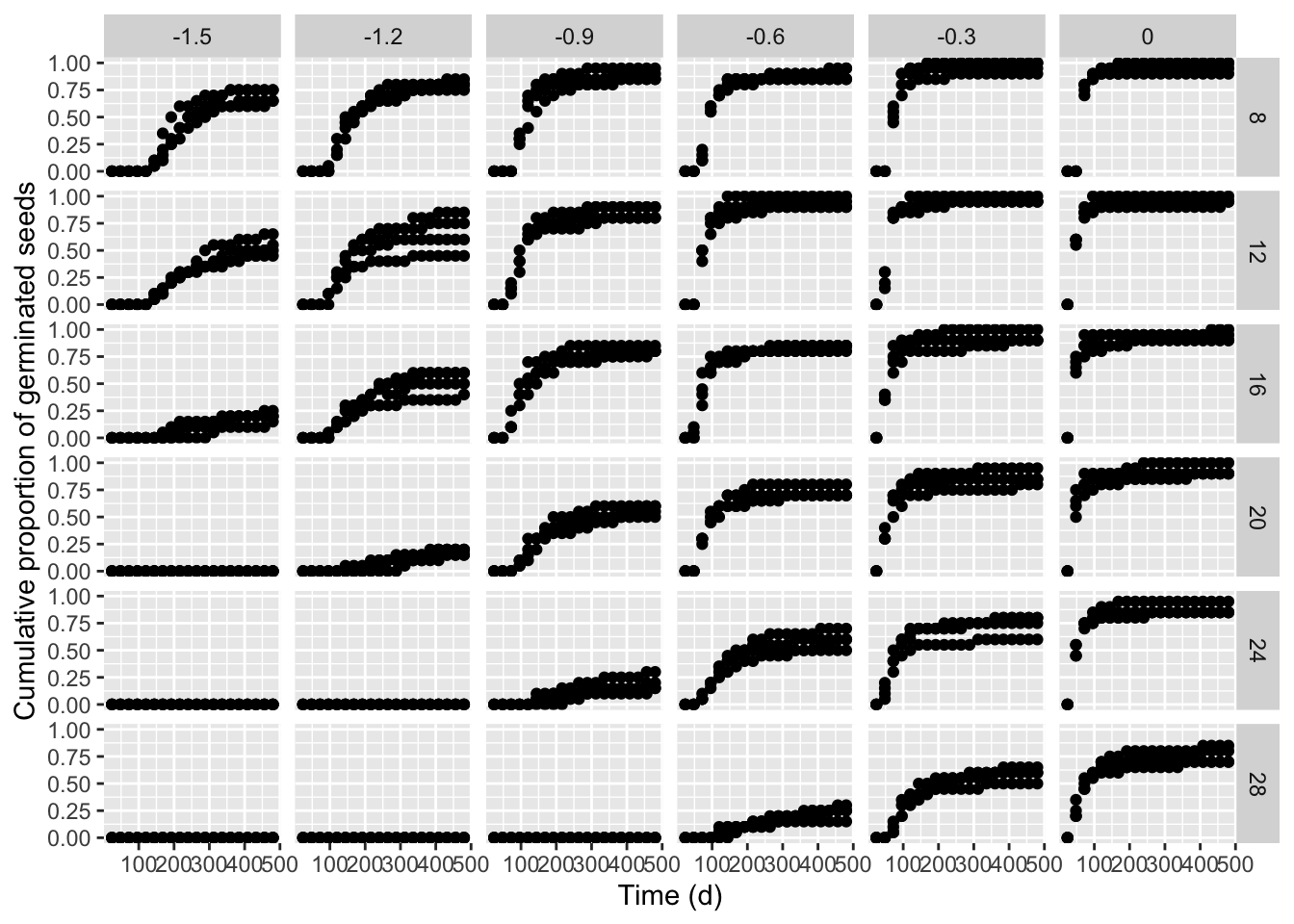

ggplot(data = hordeum, mapping = aes(timeAf, propCum)) +
  geom_point() +
  facet_grid(temp ~ water) +
  scale_x_continuous(name = "Time (d)") +
  scale_y_continuous(name = "Cumulative proportion of germinated seeds")

We see that the germination time-course is strongly affected by both temperature and water potential in the substrate and, consequently, our obvious interest is to model the effects of those environmental covariates. In our manuscript, we started from the idea that a parametric time-to-event curve is defined as a cumulative probability function (\(\Phi\)), with three parameters:

\[P(t) = \Phi \left( b, d, e \right)\] where \(P(t)\) is the cumulative probability of germination at time \(t\), \(e\) is the median germination time, \(b\) is the slope at the inflection point and \(d\) is the maximum germinated proportion. The most obvious extension is to allow for different \(b\), \(d\) and \(e\) values for each of the ith combinations of water potential (\(\Psi\)) and temperature level (\(T\)):

\[P(t, \Psi, T) = \Phi \left( b_i, d_i, e_i \right)\] From the graph above, we see several ‘degenerated’ time-to-event curves, where no germinations occurred (e.g., see the graph at -1.5 MPa and 28°C). In order to avoid problems with those curves, we can use the drmte() function and set the separate = TRUE argument, so that the different curves are fitted independently of one another and the degenerated curves are recognised and skipped, without stopping the execution in R. In particular, where no time-course of events can be estimated, it is assumed that there is no progress to germination during the study-period and that the cumulative proportion of germinated seeds remains constant across that period. Consequently, the drmte() function resorts to fitting a simpler model, where the only \(d\) parameter is estimated (that is the maximum fraction of germinated seeds).

hordeum <- hordeum %>%
  mutate(comb = factor( factor(water):factor(temp)))
mod1 <- drmte(nSeeds ~ timeBef + timeAf, data = hordeum,
             curveid = comb, fct = loglogistic(),
             separate = TRUE)
summary(mod1)
##
## Model fitted: Separate fitting of several time-to-event curves
##
## Robust estimation: no
##
## Parameter estimates:
##
##             Estimate Std. Error t-value   p-value
## b:-1.5:8    5.577670   0.671086  8.3114 < 2.2e-16 ***
## d:-1.5:8    0.705845   0.051801 13.6260 < 2.2e-16 ***
## e:-1.5:8  203.532986   8.746552 23.2701 < 2.2e-16 ***
## b:-1.5:12   4.036639   0.633750  6.3694 1.897e-10 ***
## d:-1.5:12   0.566163   0.061406  9.2201 < 2.2e-16 ***
## e:-1.5:12 232.198040  17.347102 13.3854 < 2.2e-16 ***
## b:-1.5:16   4.130712   1.174395  3.5173 0.0004359 ***
## d:-1.5:16   0.226248   0.057013  3.9683 7.238e-05 ***
## e:-1.5:16 293.584384  41.294139  7.1096 1.164e-12 ***
## d:-1.5:20   0.000000   0.000000     NaN       NaN
## d:-1.5:24   0.000000   0.000000     NaN       NaN
## d:-1.5:28   0.000000   0.000000     NaN       NaN
## b:-1.2:8    4.761454   0.531157  8.9643 < 2.2e-16 ***
## d:-1.2:8    0.803436   0.044972 17.8653 < 2.2e-16 ***
## e:-1.2:8  152.794391   7.123662 21.4489 < 2.2e-16 ***
## b:-1.2:12   4.165847   0.518344  8.0368 9.050e-16 ***
## d:-1.2:12   0.667099   0.053329 12.5092 < 2.2e-16 ***
## e:-1.2:12 145.571114   8.562685 17.0006 < 2.2e-16 ***
## b:-1.2:16   3.848053   0.556564  6.9140 4.713e-12 ***
## d:-1.2:16   0.536017   0.057474  9.3262 < 2.2e-16 ***
## e:-1.2:16 175.692653  13.009048 13.5054 < 2.2e-16 ***
## b:-1.2:20   4.679284   1.377885  3.3960 0.0006838 ***
## d:-1.2:20   0.191881   0.049814  3.8520 0.0001172 ***
## e:-1.2:20 291.173467  34.870683  8.3501 < 2.2e-16 ***
## d:-1.2:24   0.000000   0.000000     NaN       NaN
## d:-1.2:28   0.000000   0.000000     NaN       NaN
## b:-0.9:8    5.237479   0.550871  9.5076 < 2.2e-16 ***
## d:-0.9:8    0.887920   0.035345 25.1218 < 2.2e-16 ***
## e:-0.9:8  111.384281   4.427060 25.1599 < 2.2e-16 ***
## b:-0.9:12   4.368990   0.475050  9.1969 < 2.2e-16 ***
## d:-0.9:12   0.850876   0.039968 21.2889 < 2.2e-16 ***
## e:-0.9:12  99.501087   4.833892 20.5841 < 2.2e-16 ***
## b:-0.9:16   3.581796   0.400722  8.9383 < 2.2e-16 ***
## d:-0.9:16   0.816041   0.043892 18.5922 < 2.2e-16 ***
## e:-0.9:16 105.233306   6.461986 16.2850 < 2.2e-16 ***
## b:-0.9:20   3.536663   0.502112  7.0436 1.874e-12 ***
## d:-0.9:20   0.572734   0.056895 10.0665 < 2.2e-16 ***
## e:-0.9:20 154.543645  11.924187 12.9605 < 2.2e-16 ***
## b:-0.9:24   3.113060   0.947598  3.2852 0.0010191 **
## d:-0.9:24   0.233165   0.062870  3.7087 0.0002084 ***
## e:-0.9:24 269.509412  55.515112  4.8547 1.206e-06 ***
## d:-0.9:28   0.000000   0.000000     NaN       NaN
## b:-0.6:8    5.077994   0.538321  9.4330 < 2.2e-16 ***
## d:-0.6:8    0.900202   0.033548 26.8334 < 2.2e-16 ***
## e:-0.6:8   92.146203   3.725399 24.7346 < 2.2e-16 ***
## b:-0.6:12   5.564019   0.586966  9.4793 < 2.2e-16 ***
## d:-0.6:12   0.937528   0.027059 34.6476 < 2.2e-16 ***
## e:-0.6:12  74.982399   2.818636 26.6024 < 2.2e-16 ***
## b:-0.6:16   4.144136   0.458813  9.0323 < 2.2e-16 ***
## d:-0.6:16   0.837853   0.041271 20.3014 < 2.2e-16 ***
## e:-0.6:16  75.109147   3.897277 19.2722 < 2.2e-16 ***
## b:-0.6:20   4.399408   0.510297  8.6213 < 2.2e-16 ***
## d:-0.6:20   0.725331   0.049946 14.5224 < 2.2e-16 ***
## e:-0.6:20  83.735884   4.468212 18.7404 < 2.2e-16 ***
## b:-0.6:24   3.269465   0.443121  7.3783 1.603e-13 ***
## d:-0.6:24   0.607528   0.055700 10.9071 < 2.2e-16 ***
## e:-0.6:24 125.859897   9.985513 12.6042 < 2.2e-16 ***
## b:-0.6:28   2.959772   0.767672  3.8555 0.0001155 ***
## d:-0.6:28   0.265633   0.059199  4.4871 7.220e-06 ***
## e:-0.6:28 233.440197  40.981613  5.6962 1.225e-08 ***
## b:-0.3:8    6.489283   0.700089  9.2692 < 2.2e-16 ***
## d:-0.3:8    0.962474   0.021243 45.3069 < 2.2e-16 ***
## e:-0.3:8   72.248403   2.326579 31.0535 < 2.2e-16 ***
## b:-0.3:12   5.571444   0.614984  9.0595 < 2.2e-16 ***
## d:-0.3:12   0.962476   0.021243 45.3075 < 2.2e-16 ***
## e:-0.3:12  56.804335   2.154440 26.3662 < 2.2e-16 ***
## b:-0.3:16   3.759741   0.406837  9.2414 < 2.2e-16 ***
## d:-0.3:16   0.925252   0.029452 31.4157 < 2.2e-16 ***
## e:-0.3:16  53.997403   3.004606 17.9715 < 2.2e-16 ***
## b:-0.3:20   3.455788   0.382078  9.0447 < 2.2e-16 ***
## d:-0.3:20   0.863032   0.038527 22.4004 < 2.2e-16 ***
## e:-0.3:20  56.589306   3.525940 16.0494 < 2.2e-16 ***
## b:-0.3:24   3.219012   0.384905  8.3631 < 2.2e-16 ***
## d:-0.3:24   0.739176   0.049321 14.9869 < 2.2e-16 ***
## e:-0.3:24  72.448658   5.145402 14.0803 < 2.2e-16 ***
## b:-0.3:28   3.384884   0.449578  7.5290 5.110e-14 ***
## d:-0.3:28   0.591722   0.055517 10.6583 < 2.2e-16 ***
## e:-0.3:28 111.482975   8.597283 12.9672 < 2.2e-16 ***
## b:0:8       8.055166   0.890908  9.0415 < 2.2e-16 ***
## d:0:8       0.962496   0.021229 45.3391 < 2.2e-16 ***
## e:0:8      64.579539   1.810276 35.6739 < 2.2e-16 ***
## b:0:12      4.597148   0.515642  8.9154 < 2.2e-16 ***
## d:0:12      0.962502   0.021236 45.3239 < 2.2e-16 ***
## e:0:12     45.258150   2.124034 21.3076 < 2.2e-16 ***
## b:0:16      4.519281   0.504988  8.9493 < 2.2e-16 ***
## d:0:16      0.937575   0.027033 34.6821 < 2.2e-16 ***
## e:0:16     41.805944   2.052607 20.3672 < 2.2e-16 ***
## b:0:20      3.833745   0.419743  9.1335 < 2.2e-16 ***
## d:0:20      0.925095   0.029446 31.4163 < 2.2e-16 ***
## e:0:20     43.588297   2.434550 17.9040 < 2.2e-16 ***
## b:0:24      4.103341   0.467512  8.7770 < 2.2e-16 ***
## d:0:24      0.875057   0.036978 23.6641 < 2.2e-16 ***
## e:0:24     47.161280   2.550713 18.4894 < 2.2e-16 ***
## b:0:28      2.895784   0.341099  8.4896 < 2.2e-16 ***
## d:0:28      0.764633   0.047737 16.0176 < 2.2e-16 ***
## e:0:28     63.034588   4.939641 12.7610 < 2.2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

A better modelling approach

The previous approach is clearly sub-optimal, as the temperature and water potential levels are regarded as factors, i.e. as nominal classes with no intrinsic orderings and distances. It would be much better to recognise that temperature and water potential are continuous variables and, consequently, code a time-to-event model where the three parameters are expressed as continuous functions of \(\Psi\) and \(T\):

\[P(t, \Psi, T) = \Phi \left[ b(\Psi, T), d(\Psi, T), e(\Psi, T) \right]\]

In the above mentioned manuscript (Onofri et al., 2018; example 2) we used a log-logistic cumulative distribution function:

\[P(t, \Psi, T) = \frac{ d(\Psi, T) }{1 + \exp \left\{ b \left[ \log(t) - \log( e(\Psi, T) ) \right] \right\} }\]

Considering that the germination rate is the inverse of germination time, we replaced \(e(\Psi, T) = 1/GR_{50}(\Psi, T)\) and used the following sub-models:

\[d(\Psi, T) = \textrm{max} \left\{ G \, \left[ 1 - \exp \left( \frac{ \Psi - \Psi_b - k(T - T_b )}{\sigma_{\Psi_b}} \right) \right]; 0 \right\}\]

\[GR_{50}(\Psi, T) = \textrm{max} \left\{ \frac{T - T_b }{\theta_{HT}} \left[\Psi - \Psi_b - k(T - T_b )\right]; 0 \right\}\] Please, note that the shape parameter \(b\) has been regarded as independent from the environmental covariates. It may be useful to note that the the parameters are:

  1. \(\Psi_{b}\), that is the median base water potential in the seed lot,
  2. \(T_{b}\), that is the base temperature for germination,
  3. \(\theta_HT\), that is the hydro-thermal-time parameter,
  4. \(\sigma_{\Psi_b}\), that represents the variability of \(\Psi_b\) within the population,
  5. \(G\), that is the germinable fraction, accounting for the fact that \(d\) may not reach 1, regardless of time and water potential.
  6. \(k\) and \(b\) that are parameters of shape.

You can get more information from our original paper (Onofri et al., 2018). This hydro-thermal-time model was implemented in R as the HTTEM() function, and it is available within the drcSeedGerm package; we can fit it by using the drmte() function in the drcte package, but we need to provide starting values for model parameters, because the self-starting routine is not yet available. Finally, the summary() method can be used to retrieve the parameter estimates.

# Complex model and slow fitting
modHTTE <- drmte(nSeeds ~ timeBef + timeAf + water + temp,
                 data=hordeum,
                 fct = HTTEM(),
  start=c(0.8,-2, 0.05, 3, 0.2, 2000, 0.5))
summary(modHTTE, robust = T, units = Dish)
##
## Model fitted: Hydro-thermal-time-model (Mesgaran et al., 2017)
##
## Robust estimation: Cluster robust sandwich SEs
##
## Parameter estimates:
##
##                          Estimate  Std. Error  t value Pr(>|t|)
## G:(Intercept)          9.8820e-01  1.1576e-02  85.3692   <2e-16 ***
## Psib:(Intercept)      -2.9133e+00  3.4812e-02 -83.6874   <2e-16 ***
## kt:(Intercept)         7.4228e-02  1.2666e-03  58.6015   <2e-16 ***
## Tb:(Intercept)        -7.4525e-01  3.5254e-01  -2.1139   0.0346 *
## sigmaPsib:(Intercept)  5.5284e-01  2.8976e-02  19.0790   <2e-16 ***
## ThetaHT:(Intercept)    1.3091e+03  4.0638e+01  32.2130   <2e-16 ***
## b:(Intercept)          4.1650e+00  1.1332e-01  36.7548   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

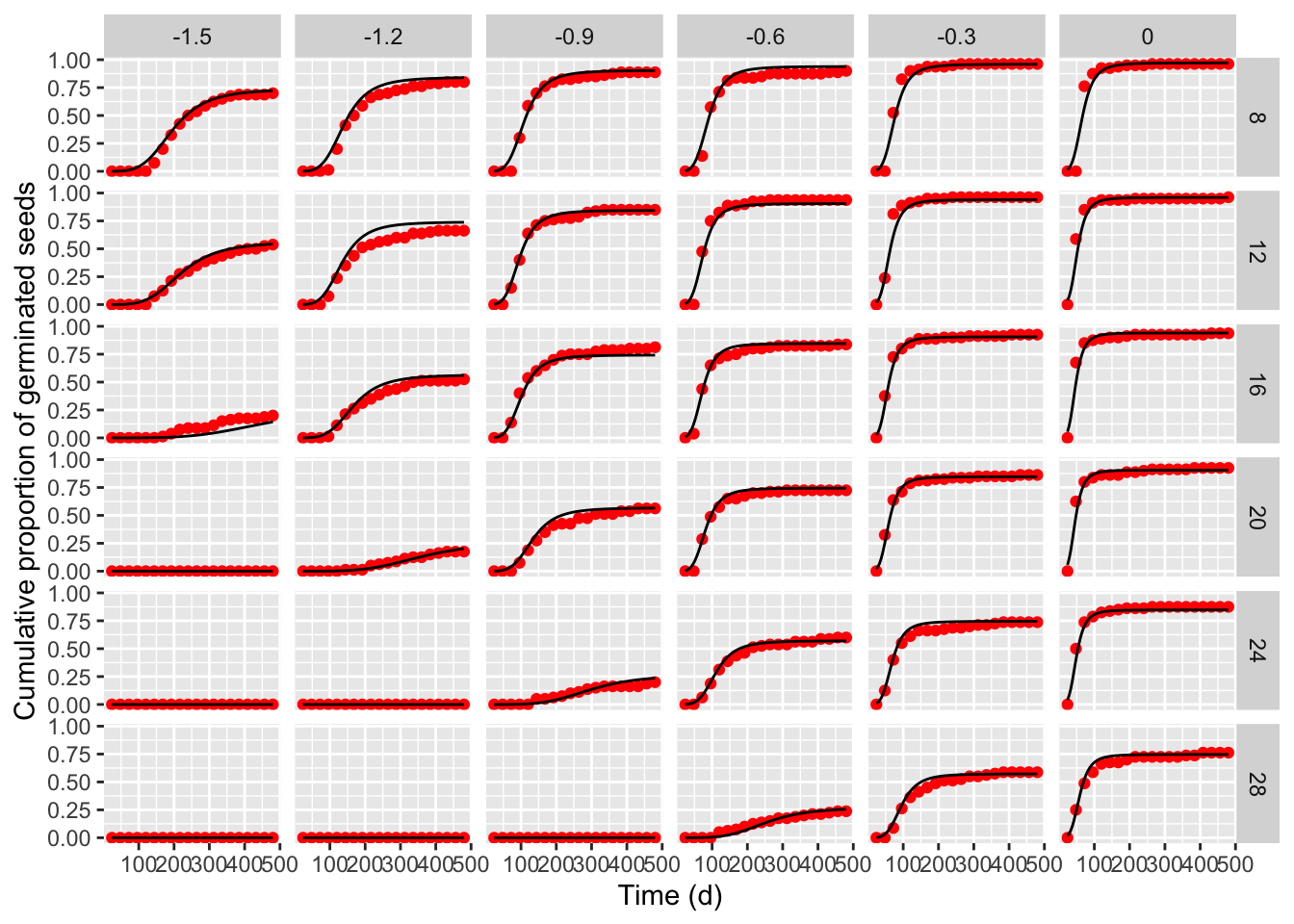

It is always important not to neglect a graphical inspection of model fit. The plot() method does not work with time-to-event curves with additional covariates (apart from time). However, we can retrieve the fitted data by using the plotData() function and use those predictions within the ggplot() function. The box below shows the appropriate coding.

tab <- plotData(modHTTE)

ggplot() +
  geom_point(data = tab$plotPoints, mapping = aes(x = timeAf, y = CDF),
            col = "red") +
  geom_line(data = tab$plotFits, mapping = aes(x = timeAf, y = CDF)) +
  facet_grid(temp ~ water) +
  scale_x_continuous(name = "Time (d)") +
  scale_y_continuous(name = "Cumulative proportion of germinated seeds")

Thank you for reading!

Prof. Andrea Onofri
Department of Agricultural, Food and Environmental Sciences
University of Perugia (Italy)
Send comments to: andrea.onofri@unipg.it
